Population Genetics And Ancestry Analysis

Table of Contents

1. Key Learning Outcomes
2. Practical Data
3. A Portability Problem
4. Population Genetics Basics
   1. Allele frequencies
   2. Linkage disequilibrium
5. Dimensional Reduction: PCA

Key Learning Outcomes

After completing this practical, you should be able to:

1. Run mixed ancestry PRS and understand the PRS Portability Problem.
2. Understand principle component analysis and dimensional reduction.
3. Understand basic population genetics and know how to analyze ancestry groups.
4. Understand the challenges and limitations of applying PRS in populations with diverse genetic backgrounds.

Practical Specific Data

The data/software required for this practical can be found in the folder day1b. Inside of this folder there are two folders, one for each operating system. Please enter the correct directory, by typing one of the following two commands:

cd day1b/mac_version   # for users of macOs
cd day1b/linux_version # for users of Linux

After doing this you should see the following directories:

• exercise1: Includes Data/Code to run multi-ancestry PRS
• exercise2: Includes Data/Code for principal component analysis
• exercise3: Includes Data/Code for population genetics analysis

The downloaded code in these directories needs to be made executable on your machine. You can do that now by typing:

chmod +x exercise*/code/*

Additionally, if you are using macOs where there is extra security, you may need to follow the additional instructions to allow your computer to run software here.

Ex 1: Portability Problem

The first exercise of this practical takes place in the folder exercise1. Once inside the folder you should see code and data directories. Looking in the data directory by typing the following command will reveal:

ls data/*

1. 🇪🇺: EURO_GWAS.assoc (European Ancestry GWAS Sumstats)
2. 🇬🇧: data/ukTarget (Genotype Phenotype data From a population from the UK.)
3. 🇯🇵: data/japanTarget (Genotype Phenotype data from a population from Japan.)

To start, run PRSice using the European GWAS and target data from the UK:

./code/PRSice --base data/EURO_GWAS.assoc --target data/ukTarget/ukTarget --binary-target F --pheno data/ukTarget/ukTarget.pheno --out ukRun

Verify that this command produce a file called "ukRun.best" that contains individual prs-scores in fourth column. This file can compared to the file data/ukTarget/ukTarget.pheno which contains phenotype-values in the third column.

🚨 OPTIONAL-CHALLENGE 🚨

Using R, Python, or another program, consider calculating the correlation between the PRS and phenotype data in the two files?

• First read the pseudocode and see if you can follow the strategy.
• Then give it a try or read the following solutions and make sure that you understand them.
• Notice the differences in similarities in the programming languages.

#1) Step1: Read Both Files in.
    prs_data = read('ukRun.best')
    pheno_data = read("data/ukTarget/ukTarget.pheno")

#2) Step2: Extract the correct Column from each file .
    prs_vals = extract_from(prs_data, column 4)
    pheno_vals = extract_from(pheno_data, column 3)

#3) Step3: Calculate the correlation.
    R2 = calculate_R2_from_data(prs_vals, pheno_vals)

R
# read-in prs-file
prs1 <- read.table("ukRun.best", header = TRUE, sep = "", stringsAsFactors = FALSE)
prs.data <- prs1[,4]

# read-in pheno-file
pheno <- read.table("data/ukTarget/ukTarget.pheno", header = TRUE, sep = "", stringsAsFactors = FALSE)
pheno.data <- pheno[,3]

# Create DataFrame
combined_data <- data.frame( x = prs.data,  y = pheno.data)

# Fit a linear model to the data
model <- lm(y ~ x, data = combined_data)
# Calculate the R-squared value
r_squared <- summary(model)$r.squared
# return R2
print(r_squared)

python3
# read-in prs-file:
with open('ukRun.best') as F:
    prs_vals = [float(line.split()[-1]) for i,line in enumerate(F.readlines()) if i > 0]

# read-in pheno-file:
with open('data/ukTarget/ukTarget.pheno') as F:
    pheno_vals = [float(line.split()[-1]) for i,line in enumerate(F.readlines()) if i > 0]

# calculate correlation
prs_mean, pheno_mean = sum(prs_vals)/len(prs_vals), sum(pheno_vals)/len(pheno_vals)
rTop = sum([(x-prs_mean)*(y-pheno_mean) for x,y in zip(prs_vals, pheno_vals)])
rBottom = (sum([(x-prs_mean)*(x-prs_mean) for x in prs_vals])**0.5) * (sum([(x-pheno_mean)*(x-pheno_mean) for x in pheno_vals])**0.5)

# Return R2
R2 = (rTop/rBottom)*(rTop/rBottom)
print(R2)

After you feel confident about the code, please run the following Rscript in the code directory to calculate the correlation and create a scatterplot using the UK PRS-result:

    Rscript --vanilla code/plot_prs_results.R data/ukTarget/ukTarget.pheno ukRun.best

Next type the commands below to reuse the European GWAS data and PRSice with the genotype-phenotype data from Japan.

    ./code/PRSice --base data/EURO_GWAS.assoc --target data/japanTarget/japanTarget --binary-target F --pheno data/japanTarget/japanTarget.pheno --out japanRun
    Rscript --vanilla code/plot_prs_results.R data/japanTarget/japanTarget.pheno japanRun.best

❓QUESTIONS:

Back to Top

1000 Genomes Data

We have observed the PRS-portability problem in practice. Recall from the lecture that the primary drivers of the PRS portability problem are between population difference in allele frequency, linkage disequilibrium and effect sizes. In the next exercises we will use 1000 Genomes (1000G) data to compare allele frequencies and linkage disequilibrium across populations.

The 1000G contains individuals from 26 source populations from five super-populations, Europe, East Asia, South Asian, Africa and America.

Population structure and population assignment is often accomplished using principal components analysis (PCA). In the final exercise we learn what PCA is and how it can be used to separate population data by recent ancestry.

Back to Top

Ex 2: Population Genetics

This exercise takes place in the folder exercise2. Once inside the folder you should see code and data directories. Looking in the data directory by typing the following command:

ls data/*

1. 🌎: chr1-22.bed/bim/fam (Global Genotype Data)
2. 🏷️: data/pop_info.pheno (Population specific annotation data)
3. 💫: data/all_phase3.king.psam (Axillary Phase Data)

Sample size of each super-population

The first thing we would like to find out about this data is the number of individuals in each super-population. Type the following command to query the number of European ancestry individuals in the downloaded dataset:

grep -F "EUR" data/all_phase3.king.psam | wc -l

Next, repeat the same command for East Asian, African, South Asian and American super-populations, by inserting the relevant ancestry codes (EAS, AFR, SAS, AMR).

🗒️ Make a note of how many individuals there are in each super-population.

Number of genetic variants analysed

1000G data contains over 80 million variants genome-wide. The 1000G data we are using in this practical is only a small fraction of these variants. This data gives a reliable approximation for the genomic analyses in this tutorial and importantly, reduces the computation time required to complete the tutorial. The following command counts the number of genetic variants on chromosomes 1-22 used in our analyses

wc -l data/chr1-22.bim

Number of polymorphic markers in each super-populations

The rate at which a genetic variant occurs in a population is known as its allele frequency. Allele frequencies are shaped by evolutionary forces over a long period of time and hence can vary between populations. This has implications for PRS research. The following plink command uses the population information in the file pop_info.pheno to generate allele frequency statistics for each SNP in the five 1000G super-populations:

./code/plink --bfile data/chr1-22 --snps-only --freq --within data/pop_info.pheno

Population-stratified allele frequency results are found in the output file plink.frq.strat.

Compare the totals against number of SNPs which have minor allele frequencies greater than 0 (and hence are useful for statistical analysis). Do this for all 5 populations (EAS, EUR, SAS, EUR and AFR), using the code below:

grep -F "AFR" plink.frq.strat > freq_report.afr
grep -F "AMR" plink.frq.strat > freq_report.amr
grep -F "EUR" plink.frq.strat > freq_report.eur
grep -F "EAS" plink.frq.strat > freq_report.eas
grep -F "SAS" plink.frq.strat > freq_report.sas
grep -F "AFR" plink.frq.strat | awk '$6 >0' freq_report.afr | wc -l
grep -F "EUR" plink.frq.strat | awk '$6 >0' freq_report.eur | wc -l
grep -F "EAS" plink.frq.strat | awk '$6 >0' freq_report.eas | wc -l
grep -F "AMR" plink.frq.strat | awk '$6 >0' freq_report.amr | wc -l
grep -F "SAS" plink.frq.strat | awk '$6 >0' freq_report.sas | wc -l

Having compared the number of SNPs that show variation in each population, answer the following questions:

❓QUESTIONS:

Allele frequency variation across the super-populations

Here we compare the distribution of allele frequency in the five ancestral populations. To do this we will use the previously-generated output on minor allele frequencies per ancestry group (the file "plink.frq.strat"), using R:

library(dplyr)
library(ggplot2)
freq <-read.table("plink.frq.strat", header =T)
plotDat <- freq %>%
mutate(AlleleFrequency = cut(MAF, seq(0, 1, 0.25))) %>%
group_by(AlleleFrequency, CLST) %>%
summarise(FractionOfSNPs = n()/nrow(freq) * 100)

ggplot(na.omit(plotDat),aes(AlleleFrequency, FractionOfSNPs, group = CLST, col = CLST)) +
geom_line() + scale_y_continuous(limits = c(0, 12)) + ggtitle("Distribution of allele frequency across genome")

❓QUESTIONS:

Linkage disequilibrium variation across populations

We will now perform pairwise LD comparisons between genome-wide SNPs to show how the relationship between genomic distance and LD strength varies between populations. We first derive information on pairwise R2 between all SNPs:

./code/plink --bfile data/chr1-22 --keep-cluster-names AFR --within data/pop_info.pheno --r2 --ld-window-r2 0 --ld-window 999999 --ld-window-kb 2500 --threads 30 --out chr1-22.AFR

Repeat this step for all five 1000G populations. Output files containing LD info for all pairwise SNPs, have a ‘.ld’ suffix Next, create a summary file containing the base-pair distance between each pair and the corresponding R2 value. The following example shows this for AFR and EUR populations only, as just these populations will be used in the plot.

cat chr1-22.AFR.ld | sed 1,1d | awk -F " " 'function abs(v) {return v < 0 ? -v : v}BEGIN{OFS="\t"}{print abs($5-$2),$7}' | sort -k1,1n > chr1-22.AFR.ld.summary
cat chr1-22.EUR.ld | sed 1,1d | awk -F " " 'function abs(v) {return v < 0 ? -v : v}BEGIN{OFS="\t"}{print abs($5-$2),$7}' | sort -k1,1n > chr1-22.EUR.ld.summary

LD decay versus chromosomal distance

The following R commamds use this output to display LD as a function of genomic distance for the African and European populations:

# need to add additional functionality to be able to
# carry out the necessary data transformation (dplyr)
# and manipulation of character strings (stringr )

install.packages("dplyr")
install.packages("stringr")
install.packages("ggplot2")
library(dplyr)
library(stringr)
library(ggplot2)

# Next we will (1) load the previously generated information on pairwise LD,
# Categorize distances into intervals of fixed length (100KB),
# Compute mean and median r2 within blocks
# Obrain mid-points for each distance interval

dfr<-read.delim("chr1-22.AFR.ld.summary",sep="",header=F,check.names=F, stringsAsFactors=F)
colnames(dfr)<-c("dist","rsq")
dfr$distc<-cut(dfr$dist,breaks=seq(from=min(dfr$dist)-1,to=max(dfr$dist)+1,by=100000))
dfr1<-dfr %>% group_by(distc) %>% summarise(mean=mean(rsq),median=median(rsq))
dfr1 <- dfr1 %>% mutate(start=as.integer(str_extract(str_replace_all(distc,"[\\(\\)\\[\\]]",""),"^[0-9-e+.]+")),
                        end=as.integer(str_extract(str_replace_all(distc,"[\\(\\)\\[\\]]",""),"[0-9-e+.]+$")),
                        mid=start+((end-start)/2))

# The preceding code block should be repeated for the file chr1-22._EUR.ld.summary.
# When doing so, the output object dfr1 on lines 4 and 5 should be renamed dfr2 to prevent the object df1 being over-written.
# Finally, we can plot LD decay for AFR and EUR reference populations in a single graph:

ggplot()+
  geom_point(data=dfr1,aes(x=start,y=mean),size=0.4,colour="grey20")+
  geom_line(data=dfr1,aes(x=start,y=mean),size=0.3,alpha=0.5,colour="grey40")+
  labs(x="Distance (Megabases)",y=expression(LD~(r^{2})))+
  scale_x_continuous(breaks=c(0,2*10^6,4*10^6,6*10^6,8*10^6),labels=c("0","2","4","6","8"))+
  theme_bw()

❓QUESTIONS:

Distribution of LD-block length

The next set of scripts will allow us to visualise the distribution of LD block length in the 1000G super-populations.

./code/plink --bfile data/chr1-22 --keep-cluster-names AFR --blocks no-pheno-req no-small-max-span --blocks-max-kb 250 --within data/pop_info.pheno  --threads 30 --out AFR

The “–block" flag estimates haplotype blocks using the same block definition implemented by the software Haploview. The default setting for the flag --blocks-max-kb only considers pairs of variants that are within 200 kilobases of each other. The output file from the above command is a .blocks file. Use the same code to generate output for EAS, EUR, SAS and AMR populations (as it is not possible to generate population-specific information using the --within flag). Then, in R:

dfr.afr <- read.delim("AFR.blocks.det",sep="",header=T,check.names=F,stringsAsFactors=F)
colnames(dfr.afr) <- tolower(colnames(dfr.afr))

dfr.eur <- read.delim("EUR.blocks.det",sep="",header=T,check.names=F,stringsAsFactors=F)
colnames(dfr.eur) <- tolower(colnames(dfr.eur))

dfr.amr <- read.delim("AMR.blocks.det",sep="",header=T,check.names=F,stringsAsFactors=F)
colnames(dfr.amr) <- tolower(colnames(dfr.amr))

dfr.sas <- read.delim("SAS.blocks.det",sep="",header=T,check.names=F,stringsAsFactors=F)
colnames(dfr.sas) <- tolower(colnames(dfr.sas))

dfr.eas <- read.delim("EAS.blocks.det",sep="",header=T,check.names=F,stringsAsFactors=F)
colnames(dfr.eas) <- tolower(colnames(dfr.eas))

plot (density(dfr.afr$kb), main="LD block length distribution", ylab="Density",xlab="LD block length (Kb)" )
lines (density(dfr.eur$kb), col="blue")
lines (density(dfr.eas$kb), col="red")
lines (density(dfr.amr$kb), col="purple")
lines (density(dfr.sas$kb), col="green")
legend("topright",c("AFR","EAS","EUR","SAS","AMR"),
fill=c("black","red","blue","green","purple"))

❓QUESTIONS:

Back to Top

Ex 3: PCA

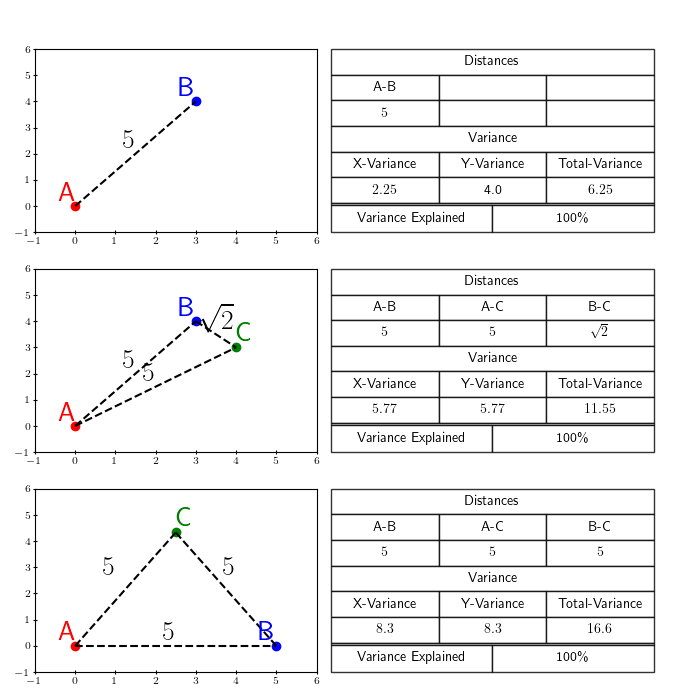

Principle component analysis is a useful technique that allows researchers to visualize high dimensional data in lower space by rotating the axes in such a way that the lower dimensions (or components) maximize the total variance explained. In statistical genetics this involves "rotating" million-dimensional data - something that is very hard to visualize! For this reason, we begin with a simpler exercise. For the following three two dimensional shapes, spend some time identifying the principle components or sketching the line across for which variance is maximized. Check your answers below:

❓QUESTIONS:

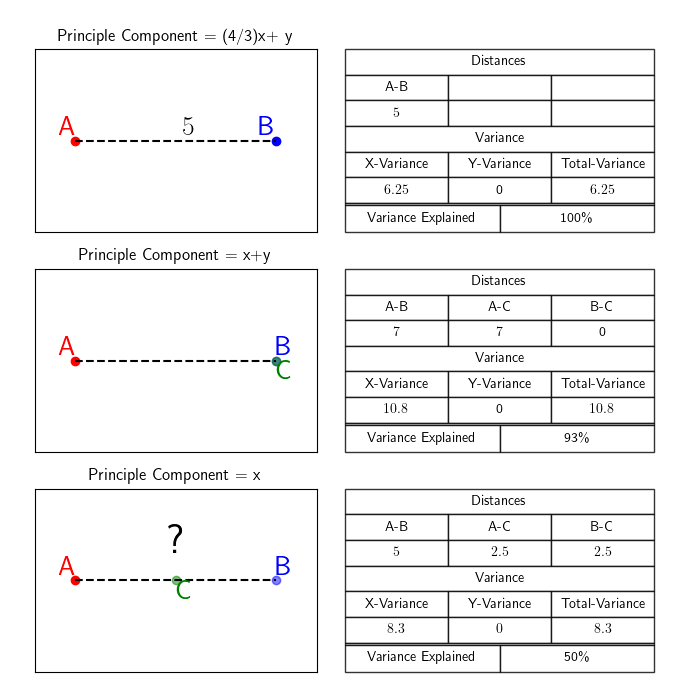

Below you can view the shapes in principal component space.

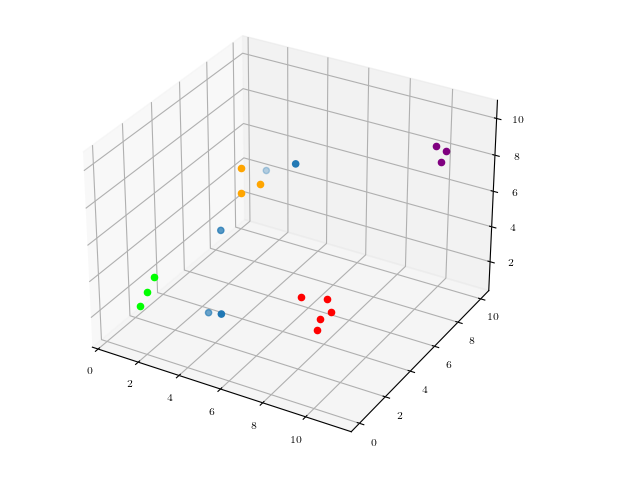

Now that we understand how PCA works in two dimensions we will consider a higher dimensional example. In the three dimensional space below, see if you can visualize a plane that maximizes the variance across two dimensions:

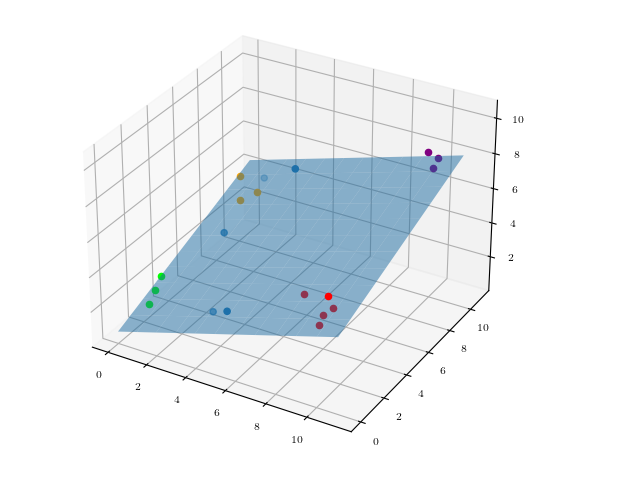

Did you get it right? If so, realize that this is equivalent to what we do in genetics - we find rotate the data through millions of dimensions of space to find the plane that maximizes the variance in two dimensions:

To run PCA with real data please enter the exercise3 directory, and type the following command to run PCA on the 1000 Genome data:

./code/plink --bfile data/chr1-22 --indep-pairwise 250 25 0.1 --maf 0.1 --threads 30 --out chr1-22.ldpruned_all_1kgv2
./code/plink --bfile data/chr1-22 --extract chr1-22.ldpruned_all_1kgv2.prune.in  --pca --threads 30

This will generate the principal components that maximize the variance in the data. To plot the result run the following commands from with an R-terminal:

require('RColorBrewer')
options(scipen=100, digits=3)
eigenvec <- read.table('plink.eigenvec', header = F, skip=0, sep = ' ')
rownames(eigenvec) <- eigenvec[,2]
eigenvec <- eigenvec[,3:ncol(eigenvec)]
colnames(eigenvec) <- paste('Principal Component ', c(1:20), sep = '')

PED <- read.table("data/all_phase3.king.psam", header = TRUE, skip = 0, sep = '\t')
PED <- PED[which(PED$IID %in% rownames(eigenvec)), ]
PED <- PED[match(rownames(eigenvec), PED$IID),]

PED$Population <- factor(PED$Population, levels=c("ACB","ASW","ESN","GWD","LWK","MSL","YRI","CLM","MXL","PEL","PUR","CDX","CHB","CHS","JPT","KHV","CEU","FIN","GBR","IBS","TSI","BEB","GIH","ITU","PJL","STU"))

col <- colorRampPalette(c("yellow","yellow","yellow","yellow","yellow","yellow","yellow","forestgreen","forestgreen","forestgreen","forestgreen","grey","grey","grey","grey","grey",
"royalblue","royalblue","royalblue","royalblue","royalblue","black","black","black","black","black"))(length(unique(PED$Population)))[factor(PED$Population)]

project.pca <- eigenvec
par(mar = c(5,5,5,5), cex = 2.0,cex.main = 7, cex.axis = 2.75, cex.lab = 2.75, mfrow = c(1,2))

plot(project.pca[,1], project.pca[,2],
     type = 'n',
     main = 'A',
     adj = 0.5,
     xlab = 'First component',
     ylab = 'Second component',
     font = 2,
     font.lab = 2)
points(project.pca[,1], project.pca[,2], col = col, pch = 20, cex = 2.25)
legend('bottomright',
       bty = 'n',
       cex = 3.0,
       title = '',
       c('AFR', 'AMR', 'EAS',
         'EUR', 'SAS'),
       fill = c('yellow', 'forestgreen', 'grey', 'royalblue', 'black'))

plot(project.pca[,1], project.pca[,3],
     type="n",
     main="B",
     adj=0.5,
     xlab="First component",
     ylab="Third component",
     font=2,
     font.lab=2)
points(project.pca[,1], project.pca[,3], col=col, pch=20, cex=2.25)

❓QUESTIONS:
